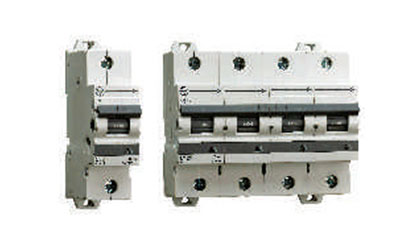

MCBs (Miniature Circuit Breakers) : 80A-125A
- Short circuit Breaking Capacity - 15kA (IEC/EN 60947-2)
- C & D Characteristics
- Available in SP, DP, TP and FP
- Suitable for Isolation as per IS/IEC 60947-1
- Protection Degree - IP 20
- Availability of wide Range of Site Mountable Accessories

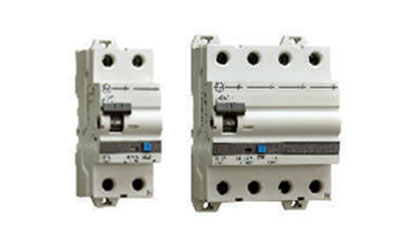

RCCBs (Residual Current Circuit Breakers) : Type-Adi (with added immunity)
- Wide Range of Current Ratings - 25A to 100A
- Precise Sensitivities for variety of applications - from 30mA to 300mA
- 2P & 4P versions
- Suitable for Isolation
- Protection Degree - IP 20
- Availability of wide Range of Site Mountable Accessories

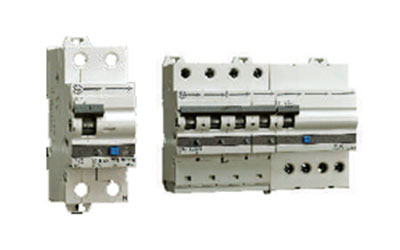

RCBOs (Residual Current Breaker with Overcurrent Protection)
- Conforms to IEC 61009-1, IS 12640-2, EN 61009-1
- Available in
- Type AC- For standard installations
- Type Adi- For installations with presence of pulsating DC along with transients and harmonics
- Wide Range of Current Ratings - 6A to 63A
- Precise Sensitivities for a variety of applications - from 10mA to 300mA
- 2P & 4P versions
- Suitable for Isolation
- Protection Degree - IP 20
- Availability of wide Range of Site Mountable Accessories

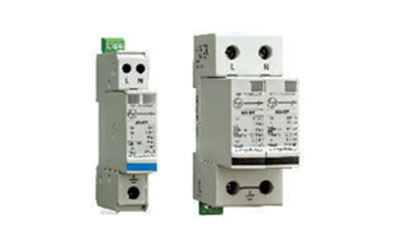

SPDs (Surge Protection Devices)
- Conforms to IEC 61643-11
- Available in Type 2 and Type 1+2
Type 2 : Protection against indirect lightning and switching surges
- Maximum Discharge Current - Imax 40kA and 15kA
- Protection Level Up - 1.1 kV
- Type 1+2 : Protection against direct and indirect lightning surges
- Nominal Discharge Current - In 20kA
- Maximum Discharge Current - Imax 50kA
- Protection Level Up - 1.7kV

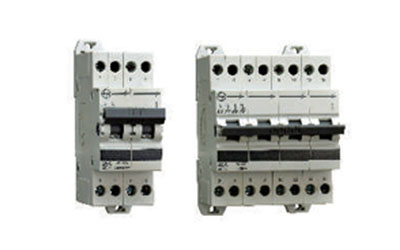

Changeover Switches
- Conforms to IEC 60947-3 and IS/IEC 60947-3
- Available in 3 positions (I-O-II) with centre off position
- Utilization category AC-22A

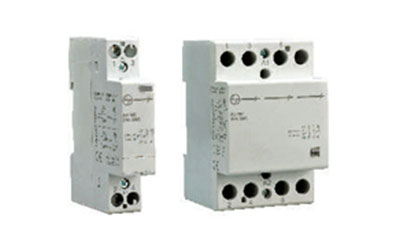

Modular Contactors
- Wide Range of Current Ratings:
- 25A, 40A and 63A
- Conforms to:
- IEC/EN 61095,
- IEC/EN 60497-4-1
- IEC 60497-5-1
- Available in:
- 1NO, 2NO, 3NO, 4NO and 2NO+2NC version
- Protection Degree IP 20
