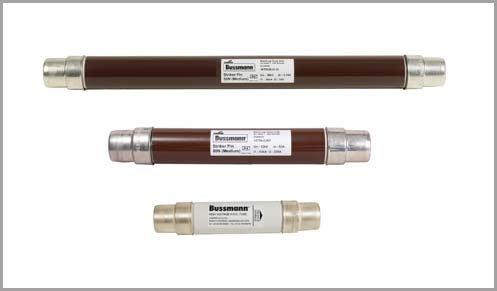

COOPER BUSSMANN ‘T’ RANGE
The Cooper Bussmann ‘T’ range medium voltage current-limiting fuse links to dimensional standard DIN 43625, are one of the most advanced design of medium voltage fuse links available anywhere in the world today. Developed by Cooper Bussmann, they comply with the very latest requirements of IEC 60282-1, are lead and cadmium free (meeting the RoHS and WEE directives) and have been designed to meet current and future global electrical utility specifications.
COOPER BUSSMANN ‘F’ RANGE
The ‘F’ range fuse links have ‘full range’ clearing capability. Cooper Bussmann ‘F’ fuse links types are designed to clear low overloads right down to the fuse links’ rated current in accordance with latest IEC 60282-1 requirements. They are thus suitable for use as a sole form of protection. ‘F’ range time-current characteristics are especially advantageous for transformer protection applications.
COOPER BUSSMANN ‘A’ RANGE
This earlier, well proven, design has values of minimum breaking current between the ‘T’ and ‘F’ range including higher current ratings.
APPLICATION
MV DIN fuse links are suitable for primary side transformer
protection, fuse switch combination unit, fuse bases and fuse switches.

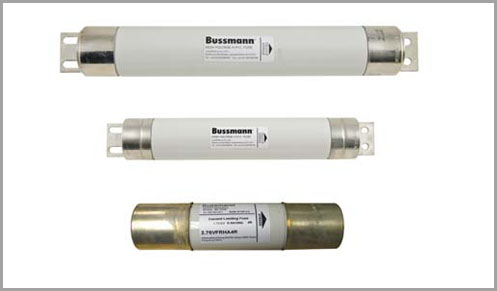

COOPER BUSSMANN MOTOR FUSE LINKS
Cooper Bussmann range of motor fuse links are designed to meet the specific requirements necessary for motor protection. During the starting cycle of direct on-line motors, the fuse elements will reach a considerably higher temperature than during normal operation; this is due to the high amount of current the motor will draw as it starts, typically, 6 times its normal load current value. This results in expansion and contraction of the fuse elements and could cause premature operation of the fuse link. Cooper Bussmann motor fuse links encompass an advanced design to minimise this effect. This therefore, negates the need to over specify the fuse rating due to high values of motor starting current.
Cooper Bussmann fuse links operate extremely quickly under heavy fault currents, resulting from the time-current characteristic. Low power dissipation ensures low temperature rise, important in multi-tier starters for example. Switching (Arc) voltages are lower than permitted values, therefore, 5.5kV fuse links are also suitable for 4.8kV and 2.4kV circuits.
APPLICATION
Fuse links provide short-circuit protection in motor circuits
to both the motor starter and cables from the starter to the motor. Overload protection is provided by the motor starter,
generally by an overload relay and contactor. Combination striker tripping may also form part of the associated equipment
which houses the fuse links and motor starters.

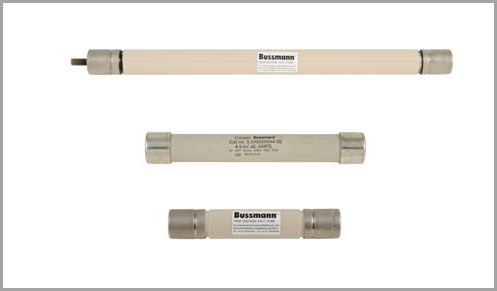

COOPER BUSSMANN AUXILIARY TRANSFORMER FUSE LINKS
Cooper Bussmann manufactures a wide range of voltage transformer (VT) fuse links. In North America they are referred to as Potential Transformer fuse links. These fuse links are designed for use in the primary side of voltage transformers to provide system isolation in the event of faults occuring in the transformer circuit.
Voltage transformer fuse links have a preferred current rating of 3.15A. Experience has shown that there is a risk of spurious operation by transient overcurrents where lower current ratings are used. In addition, in order to minimise the risk of deterioration of the fine fuse elements caused by corona, it is desirable to mount the fuse links so that the earthed metal is not in the immediate vicinity of the part of the barrel between the ferrules.
Higher current and ‘E’ ratings are available for special applications, including auxiliary transformers.
APPLICATION
Small rated fuse links for protection of voltage and auxiliary
transformers. Back-up protection up to 3.15A and voltages from 1.1kV to 36kV.

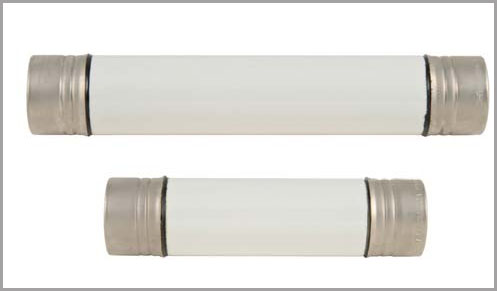

COOPER BUSSMANN UNDER OIL FUSE LINKS
Cooper Bussmann range of oil tight fuse links are designed for use in oil filled switchgear. This type was pioneered in the UK. Cooper Bussmann range has been in continuous manufacture for almost 40 years, being by far the most widely used device of its kind in the world. Over 1,000,000 Cooper Bussmann branded fuse links have been put into service without a single reported case of oil ingress. A unique triple seal system ensures against long term seal deterioration. Low power dissipation ensures long running in oil filled switchgear.
APPLICATION
Oil medium voltage fuse links are suitable for primary side
transformer protection and oil filled switch combination unit. The range is not suitable for use inside oil filled
transformer tanks where high oil temperatures may be expected.

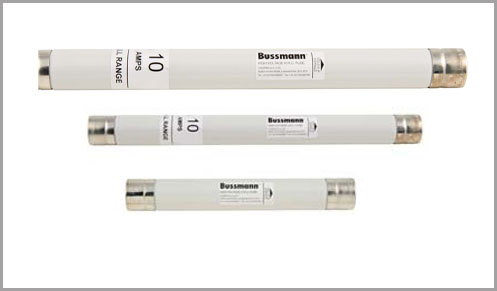

COOPER BUSSMANN FUSE LINKS FOR USE IN AIR
The Cooper Bussmann range of fuse links for use in air are available in British Standard form, BS 2692, Part 1 1975. A number of options are available, including full range capability, and alternative fixing arrangements such as different types of tags, studs and collars etc. Details are available on application. Higher current ratings can be obtained by using fuse links in parallel and special fixing arrangements are available for this purpose.
COOPER BUSSMANN - USA DIMENSIONS

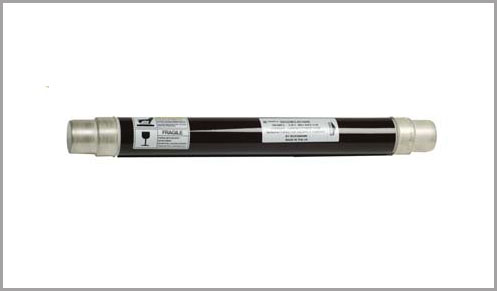

A comprehensive range of ‘E’ rated North American Dimension fuse links for industrial applications is also available. These are the latest technology full range fuse links in USA Industrial Standard 2 inch and 3 inch diameter ferrule style. Extended ratings in double barrel assemblies; striker, indicator and tag versions are also available
APPLICATION
Air fuse links are suitable for primary side transformer
protection, fuse switch combination unit, fuse bases and fuse switches.

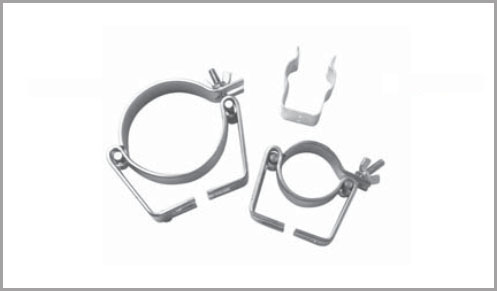

COOPER BUSSMANN FUSE CLIPS
To complement the range of tag fixings offered by Cooper Bussmann, a range
of fuse clips are available. These are suitable for use with British Standard, DIN dimensioned and VT ferrule style fuse
links. The BS and DIN clips are rated up to 200 Amps. They are designed to be fitted onto insulated studs or directly onto a
busbar.
COOPER BUSSMANN EXPULSION FUSE LINKS
Cooper Bussmann expulsion fuse links have been widely used throughout the world for over 40 years. They have in that time built up a formidable reputation and consistency of performance.
Cooper Bussmann expulsion fuse links are designed to be interchangeable with other types of manufacturers cut-out units andare available in several patterns.
APPLICATION
Expulsion fuse links current ratings should be selected on the
basis of maximum expected transient no damage currents rather than on full load current. In addition, the selection of higher
current ratings will reduce the possibility of supply interruption due to transient surges such as those due to lightning
strikes.

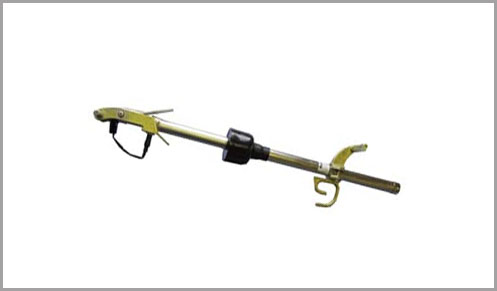

COOPER BUSSMANN AUTOMATIC SECTIONALISING LINK ASL (SMART LINKS)
Cooper Bussmann low cost retrofit
Automatic Sectionalising Link (ASL), represents a significant breakthrough in the field of high voltage overhead line
distribution system protection. It is a completely self-contained device designed for use with multi-shot circuit breakers or
auto-reclosers. The ASL was originally developed by Cooper Bussmann from invention by the Electrical Council Research Centre,
now EA technology in the UK.

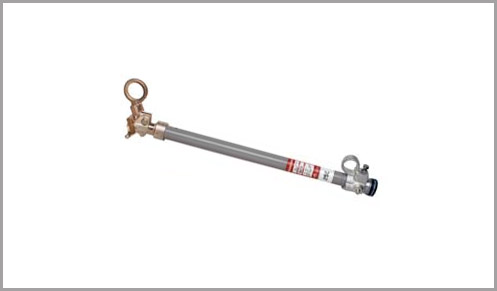

COOPER BUSSMANN BORIC ACID FUSE LINKS
Cooper Bussmann BBU medium voltage Boric Acid fuse link and complementary fuse mount or cut-out package is an expulsion fuse link style fuse, complete with a single-pole porcelain fuse mount offering medium voltage protection for indoor and outdoor applications.
Boric Acid fuse link employs calibrated silver elements combined with boric acid crystals for its interruption media. The mechanical utilisation of the spring and rod mechanism creates an interruption technique that offers mild exhaustion during fault interruption.
Boric Acid fuse links are ideally suited to provide distribution transformer protection within electrical distribution networks.
APPLICATION
The BBU Boric acid fuse provides effective protection for circuits and equipment which operate on voltage system up to 34.5kV. They can be used on industrial distribution systems and all fuses are designed for use on the following :
