Copper Bussmann

Square Body Fuses

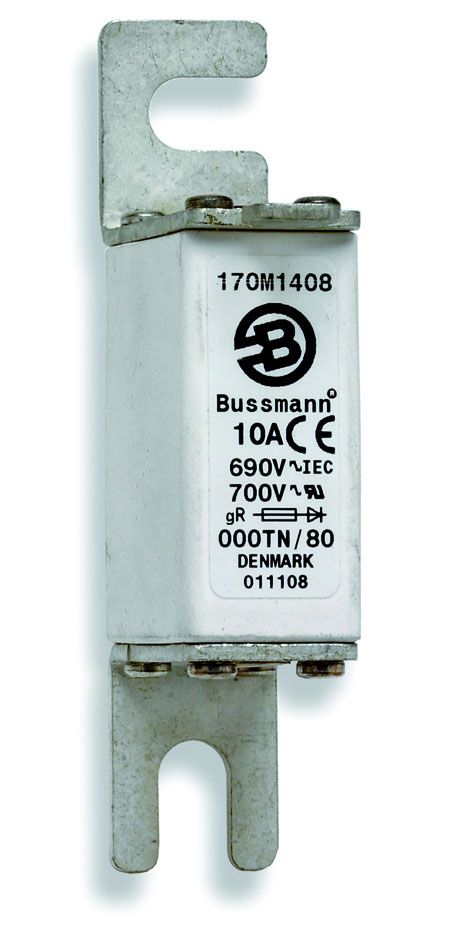

DIN 43 653 | 690V - 700V (IEC/UL) / 10- 400A

Description :

Square body DIN 43 653 stud mount high speed fuses, size 000/80 for the protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters

Ratings :

Volts: — 690Vac (IEC), — 700Vac (UL)
Amps: — 10-400A
IR: — 200kA RMS Sym.

Operating Class :

aR, gR - size 000 (10-63A), size 00 (10-80A)

Agency Information :

CE, Designed and tested to IEC 60269: Part 4, UL Recognized. UL Recognition/CSA Component Acceptance on Size 000.

Download Catalogue Send Enquiry

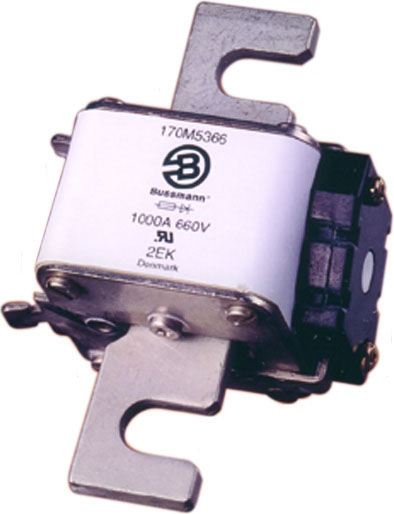

DIN 43 653 | 690V - 700V (IEC/UL) / 40 - 2000A

Description :

Square body DIN 43 653 stud mount high speed fuses, for the protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters.

Ratings :

Volts: — 690Vac (IEC), — 700Vac (UL)
Amps: — 40-2000A
IR: — 200kA RMS Sym.

Operating Class :

aR

Agency Information :

CE, Designed and tested to IEC 60269: Part 4, UL Recognized. Consult Cooper Bussmann for UL Recognition/CSA Component Acceptance status.

Download Catalogue Send Enquiry

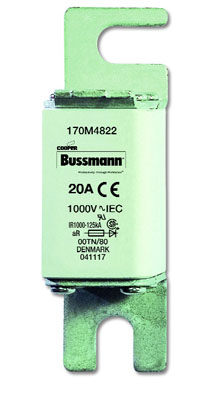

DIN 43 653 | 1000V (IEC) / 20-315A

Description :

Square body DIN 43 653 stud mount high speed fuses, for the protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters.

Ratings :

Volts: — 1000Vac (20-250A), — 900Vac (315A)
Amps: — 20-315A
IR: — 125kA RMS Sym.

Operating Class :

aR

Agency Information :

CE, Designed and tested to IEC 60269: Part 4, UL Recognized.

Download Catalogue Send Enquiry

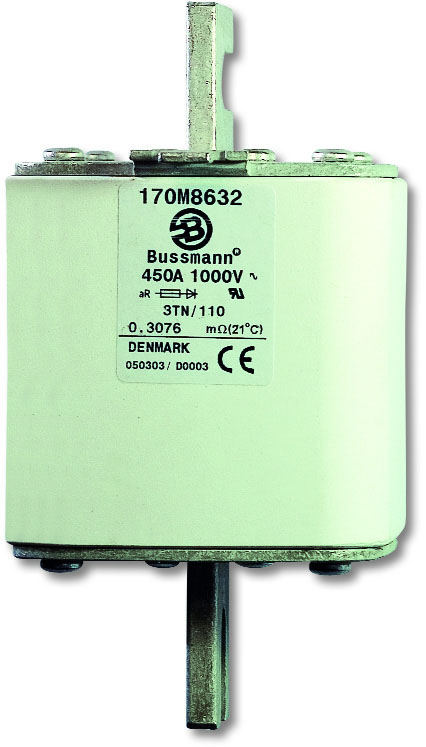

DIN 43 653 | 1000V (IEC) / 50-1400A

Description :

Square body DIN 43 653 stud mount high speed fuses, for the protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters.

Ratings :

Volts: — 1000Vac
Amps: — 50-1400A
IR: — 125kA RMS Sym.

Operating Class :

aR

Agency Information :

CE, Designed and tested to IEC 60269: Part 4, UL Recognized (only sizes 2 & 3)

Download Catalogue Send Enquiry

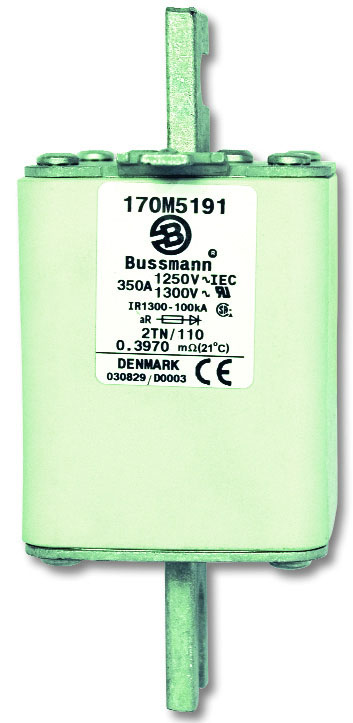

DIN 43 653 | 1250V - 1300V (IEC/UL) / 50-1400A

Description :

Square body DIN 43 653 stud mount high speed fuses, for the protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters.

Ratings :

Volts: — 1250Vac (IEC), 1300Vac (UL)
Amps: — 50-1400A
IR: — 100kA RMS Sym

Operating Class :

aR

Agency Information :

CE, Designed and tested to IEC 60269: Part 4, UL Recognized. Consult Cooper Bussmann for UL Recognition/CSA Component Acceptance status.

Download Catalogue Send Enquiry

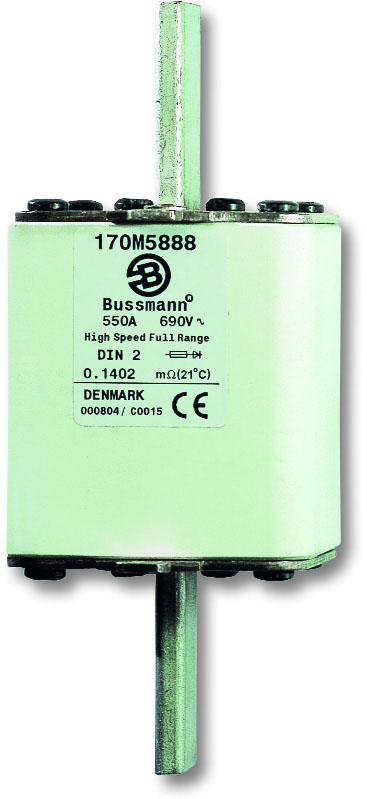

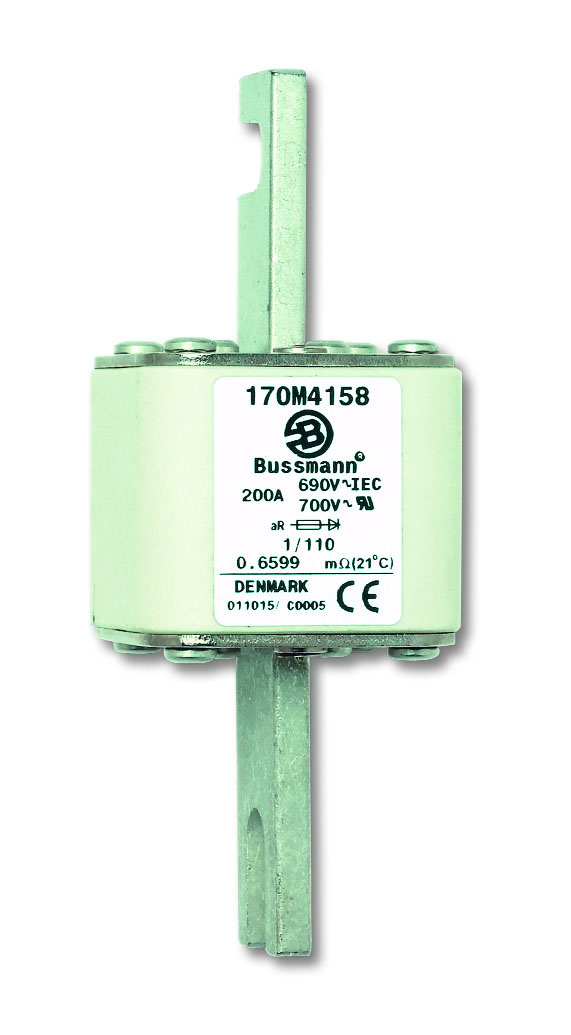

DIN 43 620 - Full Range (gR) | 690V (IEC) / 10-800A

Description :

Square body DIN 43 620 blade style high speed fuses. Full range protection fuses providing both overload and short-circuit protection.

Ratings :

Volts: — 690Vac (IEC)
Amps: — 10-800A
IR: — 200kA RMS Sym

Operating Class :

gR

Agency Information :

CE, Designed and tested to IEC 60269: Part 4.

Download Catalogue Send Enquiry

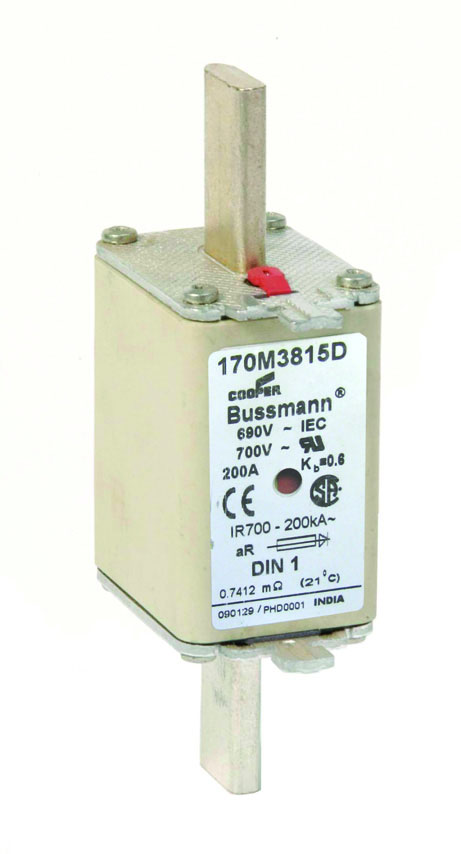

DIN 43 620 - Dual Indicator Fuses | 690V (IEC) / 10 – 1600A

Description :

Square Body DIN 43 620 blade style high speed fuses with dual indicator system: one indicator in the fuse body and other in the metalic end plate. Interchangeable with existing high speed DIN 43620 fuses for protection of UPS, soft starters, solid state relays, variable speed drives, rectifiers and inverters.

Ratings :

Volts: — 690Vac
Amps: — 10-1600A
IR: — 200kA RMS Sym

Operating Class :

gR (10-32A, 50-63A) , aR (40A, 80-1600A)

Agency Information :

CE, IEC 60629 Part 4, UL Recognised, CSA.

Download Catalogue Send Enquiry

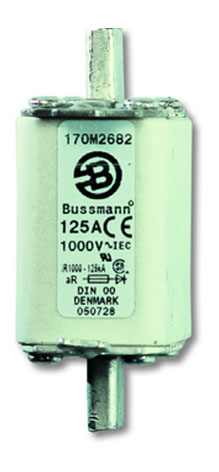

DIN 43 620 | 1000V (IEC): 20–225A

Description :

Square body DIN 43 620 blade style high speed fuses for the protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters.

Ratings :

Volts: — 1000Vac
Amps: — 20-225A
IR: — 125kA RMS Sym.

Operating Class :

aR

Agency Information :

CE,Designed and tested to IEC 60269: Part 4, UL Recognized.

Download Catalogue Send Enquiry

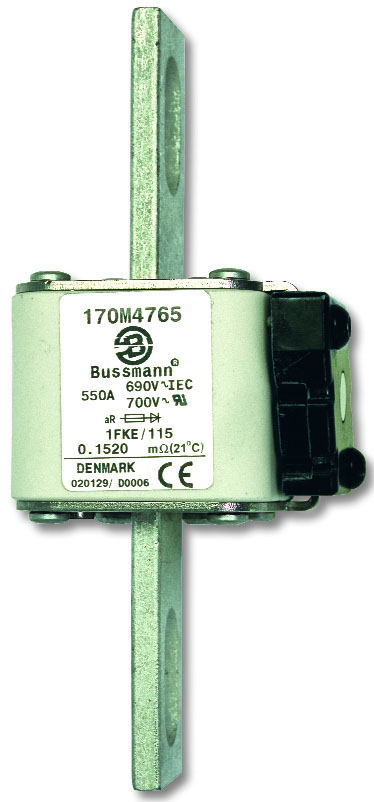

French Style 690V - 700V (IEC/UL) / 40-1500A

Description :

Square body French Style high speed fuses for the protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters.

Ratings :

Volts: — 690Vac (IEC), 700Vac (UL)
Amps: — 40-1500A
IR: — 200kA RMS Sym

Operating Class :

aR

Agency Information :

CE, Designed and tested to IEC 60269: Part 4, UL Recognized.

Download Catalogue Send Enquiry

US Style 690V - 700V (IEC/UL) / 40-2000A

Description :

Square body US Style high speed fuses for the protection of DC common bus, DC drives, power converters/rectifiers and reduced voltage starters.

Ratings :

Volts: — 690Vac (IEC), 700Vac (UL)
Amps: — 40-2000A
IR: — 200kA RMS Sym

Operating Class :

aR

Agency Information :

CE, Designed and tested to IEC 60269: Part 4, UL Recognized. Consult Cooper Bussmann for UL Recognition/CSA Component Acceptance status.

Download Catalogue Send Enquiry
